EOS Lens Resolution Tests EOS Lens Resolution Tests

Time: May 2005
Camera: Canon EOS 20D Digital SLR camera with 8.2Mb CMOS sensor
Lenses: Peleng 8mm f/3.5 MC 180° circular fisheye
Canon EF 17-35mm f/2.8 L USM
Canon EF-S 17-85mm f/4-5.6 IS USM
Canon EF 50mm f/1.4 USM
Canon EF 200mm f/1.8 L USM
Canon Extender EF 2X II

The lenses were tested with a Canon EOS 20D digital single reflex camera boby with a 3504X2336 pixel CMOS. Setup was peppered with a Berlebach Reporter 8043 tripod, manfrotto ProBall 308RC and a Canon TC-80N3 remote control timer. Images vere cut much smaller (100X100 pixels) and magnified 3X. The red/white dots representing 17 pixels indicate where the test table lines theoretically could be seen separate. The first two images on each line are saved by the camera as large jpg-files and the next two Canon CR2-RAW-images.

Cuts from the images with various lenses
LENS
Center of a jpg
Edge of a jpg
Center of a RAW
Edge of a RAW

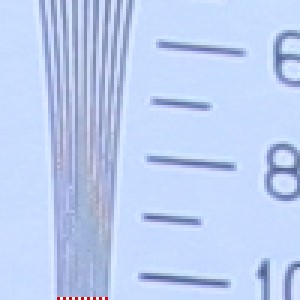

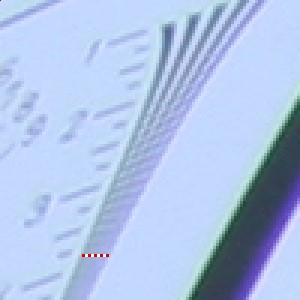

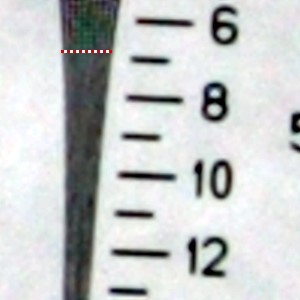

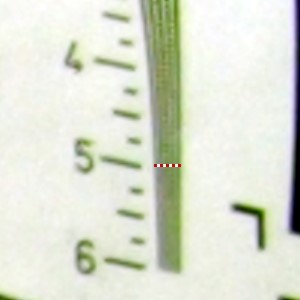

Peleng 8mm f/3.5 Fish Eye L-jpg cut
nice! 		L-jpg cut
fishy 		raw cut
. 		raw cut
.

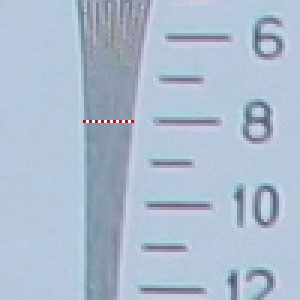

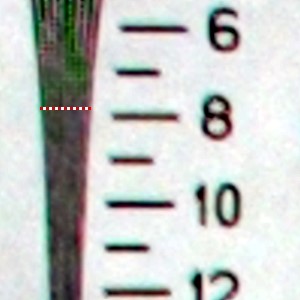

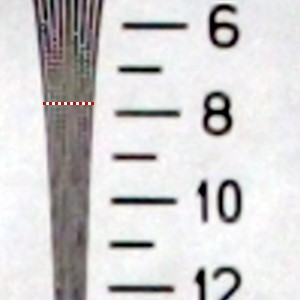

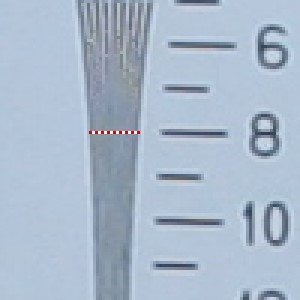

Canon EF 17-35mm f/2.8 L USM L-jpg cut
at 17mm 		L-jpg cut
at 17mm 		raw cut
at 17mm 		raw cut
at 17mm

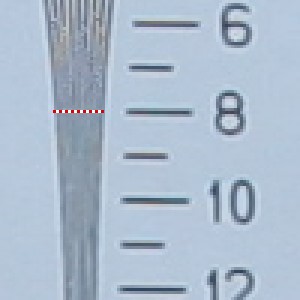

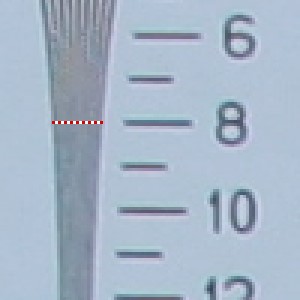

L-jpg cut
at 26mm 		L-jpg cut
at 26mm 		raw cut

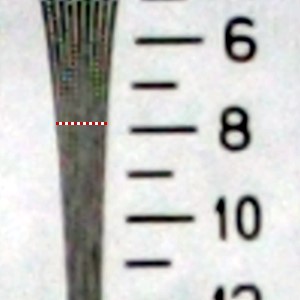

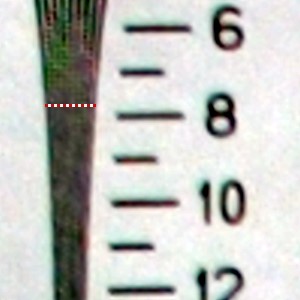

at 28mm 		raw cut
at 28mm

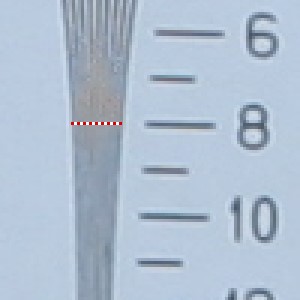

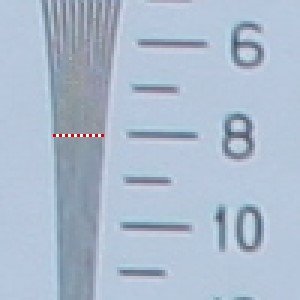

L-jpg cut

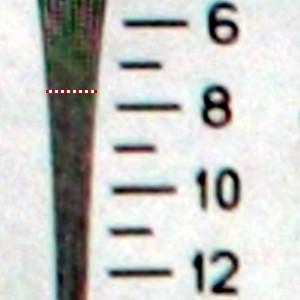

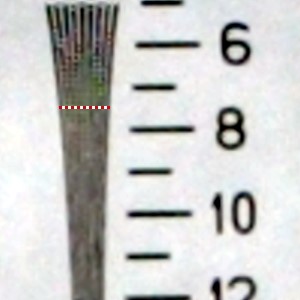

at 35mm 		L-jpg cut
at 35mm 		raw cut
at 35mm 		raw cut
at 35mm

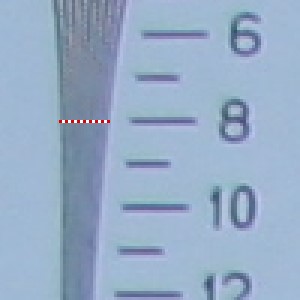

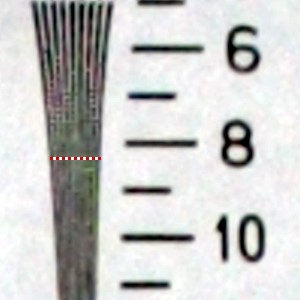

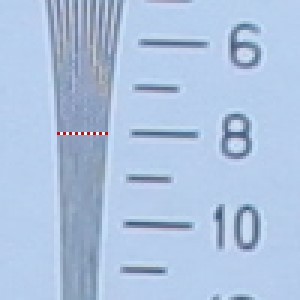

Canon EF-S 17-85mm F/4-5,6 IS USM L-jpg cut
at 17mm 		L-jpg cut

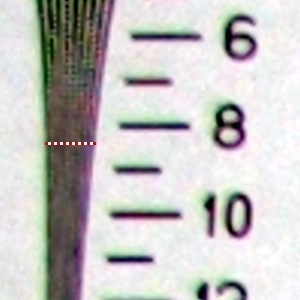

at 17mm 		raw cut
at 17mm 		raw cut
at 17mm

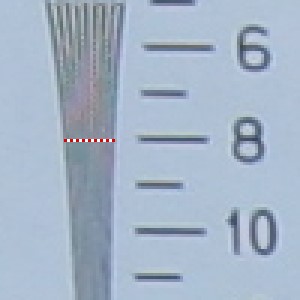

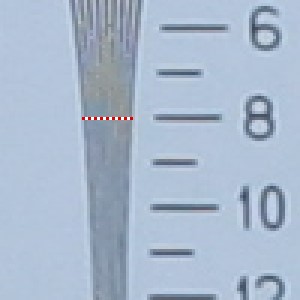

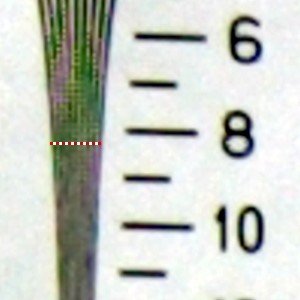

L-jpg cut
at 50mm 		L-jpg cut

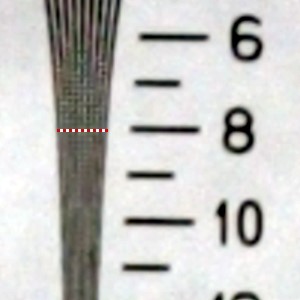

at 50mm 		raw cut
at 50mm 		raw cut
at 50mm

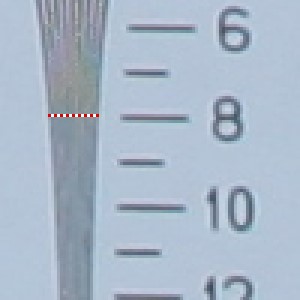

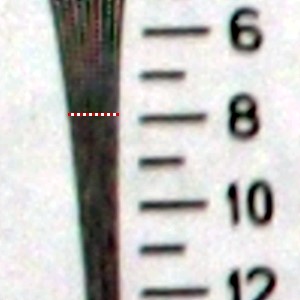

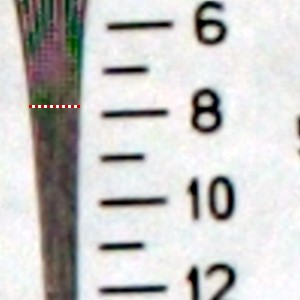

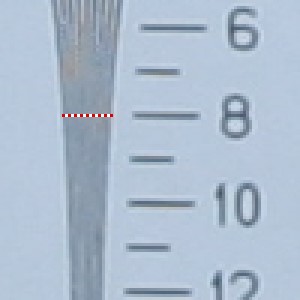

L-jpg cut
at 85mm 		L-jpg cut
at 85mm 		raw cut
at 85mm 		raw cut
at 85mm

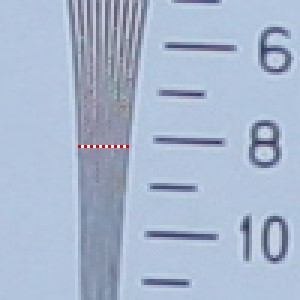

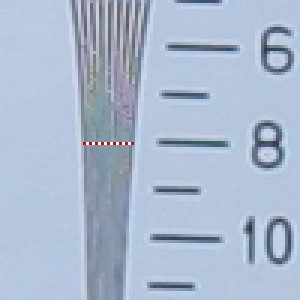

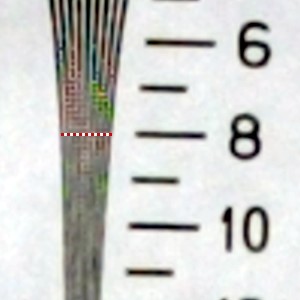

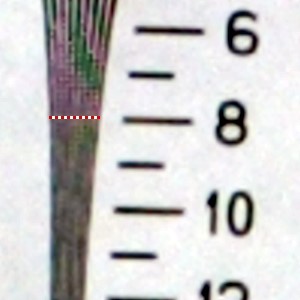

Canon EF 50mm f/1.4 USM L-jpg cut
L-jpg cut
raw cut
raw cut

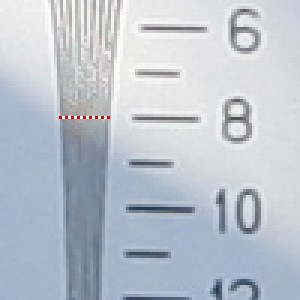

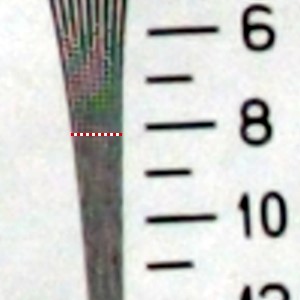

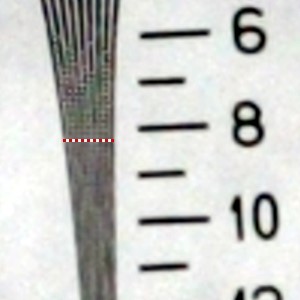

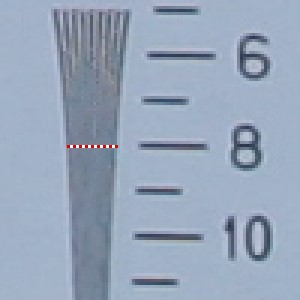

Canon EF 200mm f/1.8 L USM L-jpg cut
L-jpg cut
raw cut
raw cut

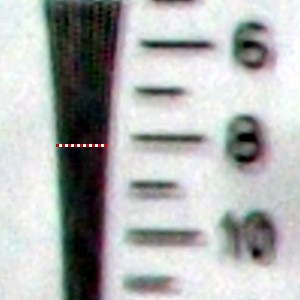

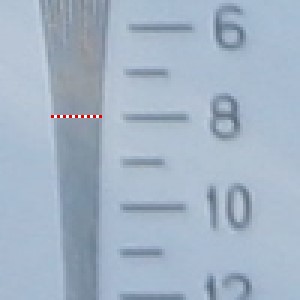

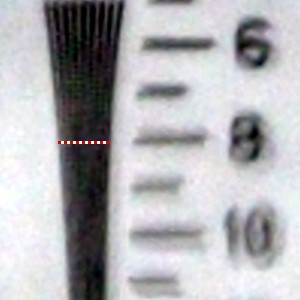

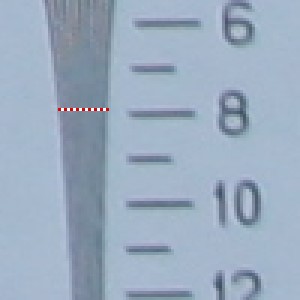

Canon EF 200mm f/1.8 L USM with EF 2x II = 400mm L-jpg cut
. 		L-jpg cut
. 		raw cut
The wind was rising... 		raw cut
and the setup was shaking
