Coronado (Meade) MaxScope40 brass telescope for Sun light in hydrogen alpha with SolarMax40 BF10 ( 0,7Å front filter element ) and T-max ( wave length adjustment ).

91 % of atoms in our Sun are hydrogen. The hydrogen alpha is the first atomic transition in the Balmer series; wavelength = 656.3 nm. This absorption line of neutral hydrogen falls in the red part of the visible spectrum and is convenient for solar observations. The H-alpha line is used for observations of solar flares, filaments, prominences and the fine structures of other active regions.

Finding the Sun is easy by rough pointing and then looking into the eye piece holder.
Telescope was mounted on a Berlebach Reporter 8043 tripod with a Manfrotto ProBall 308RC.
Setup and details
One of the 3 boxes

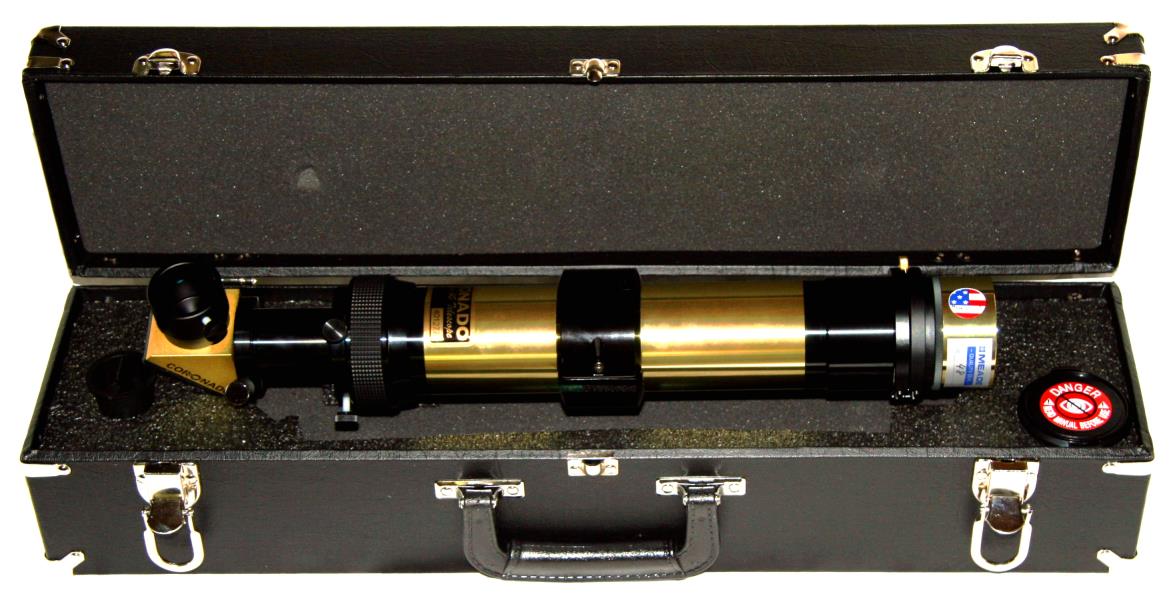

Telescope was delivered in a nice box! 		Philips To You Camera

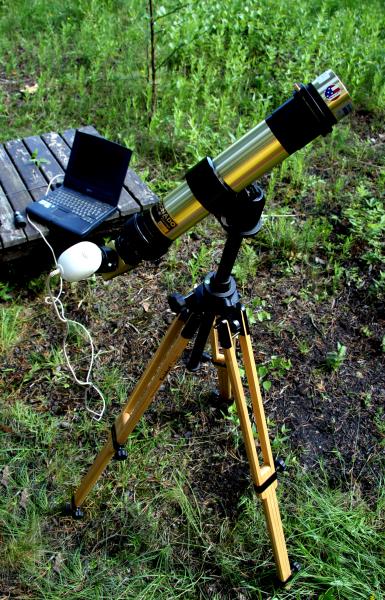

ToUcam setup 		Author too
Visual setup 		beautiful workmanship

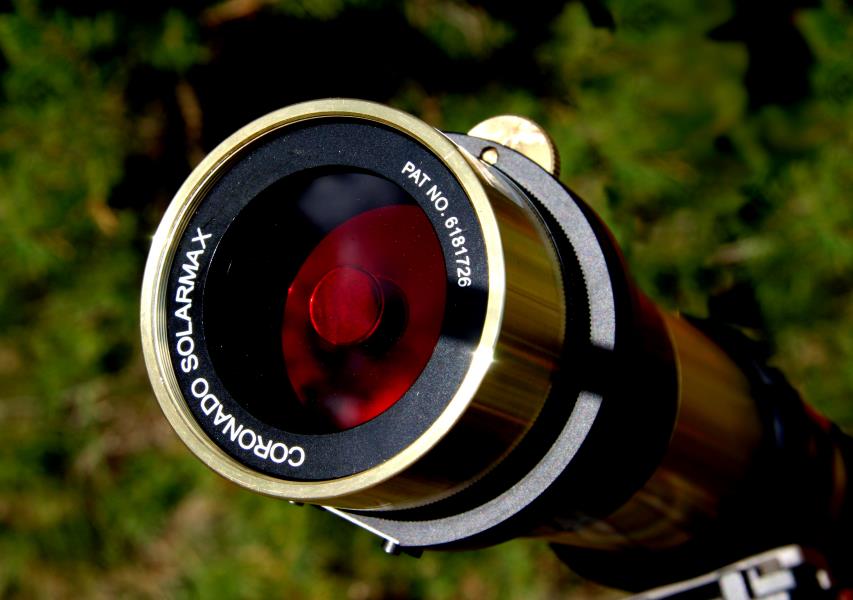

BF10 and T-Max wheel

I did not get a Canon EOS 20D focused with a nose piece so these are hand held shots at 800ISO, exposure 1/30 sec.
First light images 18.6.2005 noon.
with Canon EOS 20D
First light 		with Canon EOS 20D
Second light 		with Canon EOS 20D
Still lot to learn!

The Philips ToUcam focused on focal plane OK. I used different RegiStax3 processing option here.
Stacked video images 18.6.2005 after noon.
with Philips ToUcamPro
15:15 EET 		with Philips ToUcamPro
15:40 EET 		with Philips ToUcamPro
15:49 EET

Next step was to add a negative lens into the nose piece at Teknofokus
and machine a Coronado clamp matching plate for Fujigawa motorized tripod in TA Machines.

Images of 24.6. and 26.6.
with Canon EOS 20D

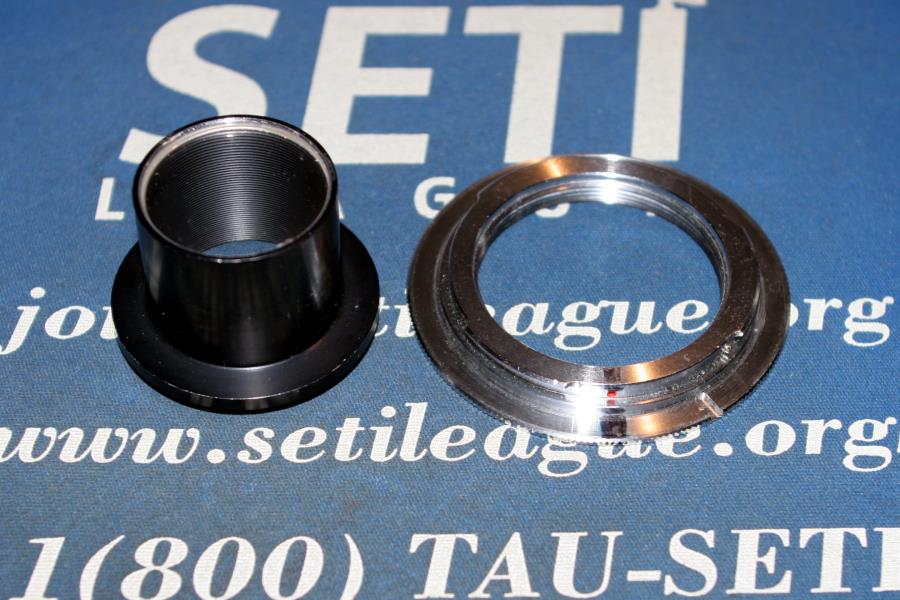

Adapters 		with Canon EOS 20D
15:41 EET 		with Canon EOS 20D
08:26 EET 		with Canon EOS 20D

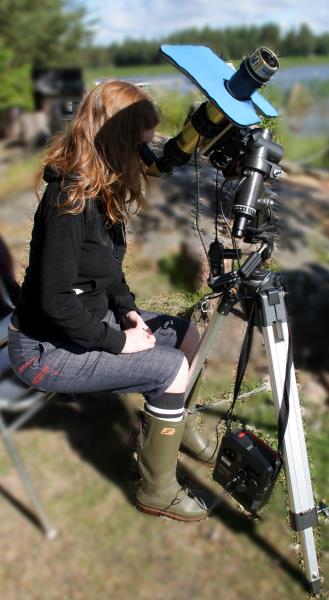

Setup

So with this nose piece at and a Baader 2X triplet barlow I got my first image with granulation. Only the R-channel was stripped from the RAW-image.
Images of 3.7.2005
with Canon EOS 20D
12:00 EET 		with Canon EOS 20D
14:15 EET

Only the R-channel from two RAW-images
with Canon EOS 20D
15.7.2005 12:36 EET 		with Canon EOS 20Da
3.10.2005 partial eclipse
